Update Existing Projects

Wisej.NET 3 introduces a new approach for creating and working with projects based on ASP.NET Core. The changes include a new SDK Project Format, Kestrel Web Server, and more.

tip

There is no need to change the project format if you are staying with .NET 4.8! Wisej.NET 3 supports both .NET Framework and .NET Core. You only need to change the project format to the SDK format if you are going to use .NET Core and ASP.NET Core.

The Basics​

Change Project Format to SDK​

danger

When migrating a Wisej.NET 2.x project to Wisej.NET 3, it's not recommended to change the existing project but rather create a new Wisej project using the new templates and copy over files.

Moving an older Wisej.NET project to a .NET Core target in Wisej.NET 3 requires the SDK project format. The following steps describe a manual conversion; creating a new project and copying the files remains the recommended approach.

  1. Take note of all embedded resources, references and build customizations within the Project.
  2. Unload the Project.
  3. Delete the content of the .csproj file.
  4. Copy the following text into the .csproj file.
<Project Sdk="Microsoft.NET.Sdk.Web">

  <PropertyGroup>
    <TargetFrameworks>net48;net6.0</TargetFrameworks>
    <PlatformTarget>AnyCPU</PlatformTarget>
    <GenerateAssemblyInfo>false</GenerateAssemblyInfo>
    <EmbeddedResourceUseDependentUponConvention>true</EmbeddedResourceUseDependentUponConvention>
    <RootNamespace>$(MSBuildProjectName.Replace(" ", "_").Replace("-", "_"))</RootNamespace>
    <NoWarn>CA1416</NoWarn>
  </PropertyGroup>

  <PropertyGroup Condition="'$(TargetFramework.TrimEnd(`0123456789`))'=='net'">
    <OutputPath>bin\</OutputPath>
    <StartupObject></StartupObject>
    <OutputType>Library</OutputType>
    <RunCommand>$(ProgramFiles)\IIS Express\iisexpress.exe</RunCommand>
    <AppendTargetFrameworkToOutputPath>false</AppendTargetFrameworkToOutputPath>
    <RunArguments>/path:"$(MSBuildProjectDirectory)" /port:5000</RunArguments>
  </PropertyGroup>

  <PropertyGroup Condition="'$(TargetFramework.TrimEnd(`0123456789`))'!='net'">
    <StartupObject>$(RootNamespace).Startup</StartupObject>
  </PropertyGroup>

  <ItemGroup Condition="'$(TargetFramework.TrimEnd(`0123456789`))'=='net'">
    <Reference Include="Microsoft.CSharp" />
    <Reference Include="System.Windows.Forms"><Aliases>swf</Aliases></Reference>
    <Reference Include="System.Data.DataSetExtensions" />
    <Compile Remove="Startup.cs" />
    <Content Include="Startup.cs"/>
  </ItemGroup>

  <ItemGroup>
    <Folder Include="Themes\" />
  </ItemGroup>

  <ItemGroup>
    <Content Update="Default.json">
      <CopyToOutputDirectory>Never</CopyToOutputDirectory>
    </Content>
    <Content Update="Web.config">
      <CopyToOutputDirectory>Never</CopyToOutputDirectory>
    </Content>
  </ItemGroup>

  <ItemGroup>
    <None Remove="Default.html" />
    <None Remove="favicon.ico" />
  </ItemGroup>

  <ItemGroup>
    <Content Include="Default.html">
      <CopyToPublishDirectory>Always</CopyToPublishDirectory>
    </Content>
    <Content Include="favicon.ico">
      <CopyToPublishDirectory>Always</CopyToPublishDirectory>
    </Content>
  </ItemGroup>

  <ItemGroup>
    <PackageReference Include="Wisej-3" Version="3.0.*" />
    <PackageReference Include="System.Data.SqlClient" Version="4.*" />
  </ItemGroup>

</Project>

5. Reload the Project

6. Add embedded resources, references, and build customizations back.

danger

Files that are Embedded Resources are reset to Content, don't forget to set them again to Embedded Resource.

Upgrade Resource Files (.resx)​

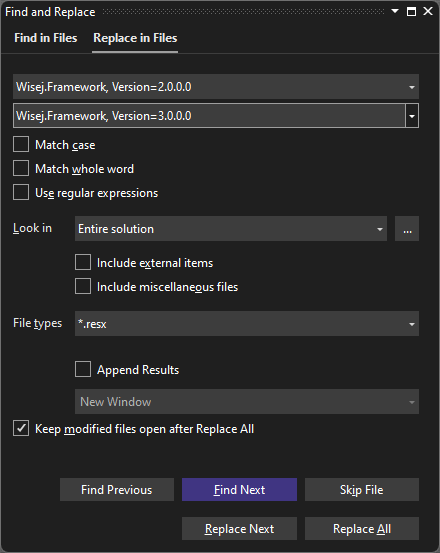

All the localization .resx files need to be upgraded to Wisej.Framework, Version=3.0.0.0. It's a simple task that can be completed using Visual Studio Search & Replace.

Replace "Wisej.Framework, Version=2.0.0.0" with "Wisej.Framework, Version=3.0.0.0".

info

It's likely that your projects don't have any Wisej.Framework reference in the .resx files.

Add Startup.cs​

A Startup.cs file is required for ASP.NET Core projects (Wisej projects targeting .NET Core).

  1. Right-Click the Project.
  2. Click Add > Class.
  3. Set the name to Startup.cs.
  4. Click Add.
  5. Copy the following content into the Startup.cs file or download the file below.

Startup.cs

Startup.vb

using Microsoft.AspNetCore.Builder;
using Microsoft.Extensions.Configuration;
using Wisej.Core;

namespace $safeprojectname$
{
	/// <summary>
	/// The Startup class configures services and the app's request pipeline.
	/// For more information on how to configure your application, visit https://go.microsoft.com/fwlink/?LinkID=398940.
	/// </summary>
	public class Startup
	{
		public Startup(IConfiguration configuration)
		{
			Configuration = configuration;
		}
		public IConfiguration Configuration { get; }

		public static void Main(string[] args)
		{
			var builder = WebApplication.CreateBuilder(new WebApplicationOptions
			{
				Args = args,
				WebRootPath = "./"
			});

			var app = builder.Build();
			app.UseWisej();
			app.UseFileServer();
			app.Run();
		}
	}
}
danger

Don't forget to update the Namespace.

Add launchSettings.json​

Wisej 3 projects targeted for .NET Core require adding a launchSettings.json file to the /Properties directory of the project.

  1. Right-Click the project on the \Properties folder.
  2. Click Add > New Item > JSON File.
  3. Name the file launchSettings.json.
  4. Copy the following text into the file.

launchSettings.json

launchSettings.json
{
    "iisSettings": {
        "windowsAuthentication": false,
        "anonymousAuthentication": true,
        "iisExpress": {
            "applicationUrl": "http://localhost:54429",
            "sslPort": 0
        }
    },
    "profiles": {
        "MyProjectName": {
            "commandName": "Project",
            "launchBrowser": true,
            "applicationUrl": "http://localhost:5000"
        }
    }
}
info

Profiles define the startup behavior for the application. Don't forget to update the profile names.

Project Properties​

The new SDK project format has many properties that are not available in the project property panel. You have to get used to editing the .csproj or .vbproj files directly.

The available properties depend on the SDK and build targets. Use the references below to find the properties relevant to your project.

These are just a few that we have added to our templates:

Implementation Changes​

With the release of Wisej.NET 3.0, which is the first version to support both .NET Framework and .NET Core, we have standardized all classes to ensure compatibility across these two environments. This means that any class differences between the two have been reconciled, and unique classes from either environment have been seamlessly integrated.

UITypeEditor​

Originally, the class System.Drawing.Design.UITypeEditor was utilized. However, because it does not exist in .NET Core, we have reimplemented it as Wisej.Web.UITypeEditor.

Therefore, attributes that were previously declared as [Editor(typeof(MyEditor), typeof(System.Drawing.Design.UITypeEditor))] must be updated. You can now specify them as [Editor(typeof(MyEditor), typeof(UITypeEditor))] or [Editor(typeof(MyEditor), typeof(Wisej.Web.UITypeEditor))], depending on the namespaces defined in your using directives.

Http* Types​

Previously, all Http* types were located in the System.Web namespace. However, in .NET Core, these types differ significantly. To address this, we have reimplemented a unified Http type system under Wisej.Core.Http*. This ensures consistency and compatibility when working across different .NET environments.

When transitioning from System.Web classes, you will likely encounter compilation errors, making it straightforward to identify where these classes are used in your code. Typically, these classes are utilized in the Upload control, within any implementation of the IWisejHandler interface, and in managing cookies collections. Identifying and updating these areas will be essential to ensure compatibility with the new system.
