  1. Controls & Components
  2. Common Dialogs

OpenFileDialog

Prompts the user to open a file from the server.

PreviousColorDialogNextSaveFileDialog

Last updated 3 months ago

Was this helpful?

This class allows you to check whether a file exists and to open it. The ShowReadOnly property determines whether a read-only check box appears in the dialog box. The ReadOnlyChecked property indicates whether the read-only check box is checked.

Most of the core functionality for this class is found in the FileDialog class.

If you want to give the user the ability to select a folder instead of a file, use instead.

For a full list of properties, methods and events see the

Features

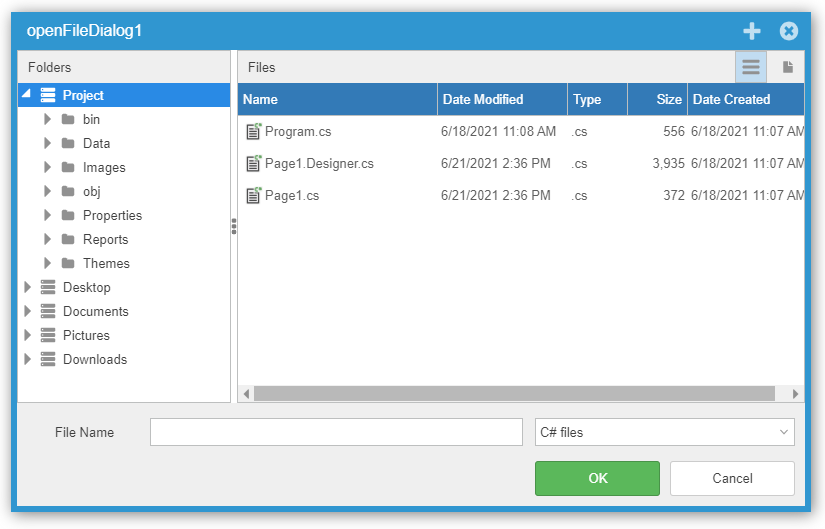

Filtering

The OpenFileDialog filters files shown to the user based on a given pattern. For example, the filter C# files|*.cs|All files|*.* will show files ending with .cs by default. Users can modify the filter using the dropdown menu.

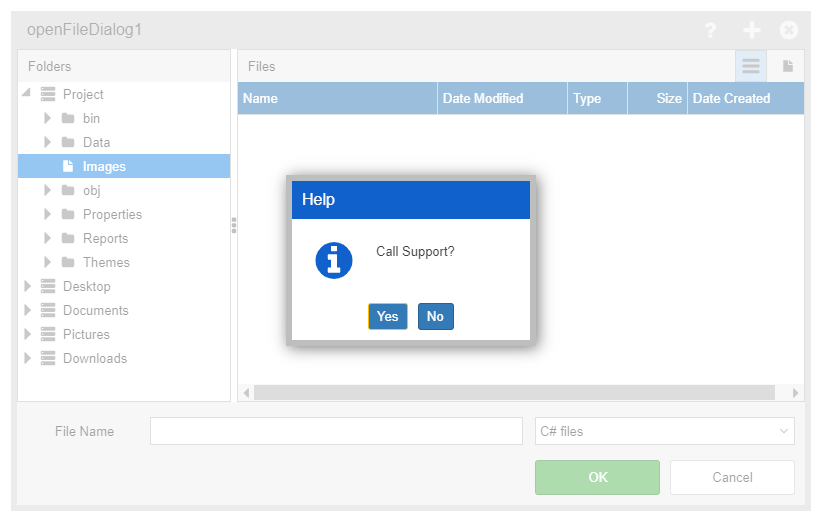

Help

The OpenFileDialog includes an optional "?" (Help) tool for displaying navigation assistance.

How To

Connect to the File System

Add at least one IFileSystemProvider to the Roots collection before showing the dialog:

//Using an absolute file path
OpenFileDialog filedialog = new OpenFileDialog();
filedialog.Roots.Add(new FileSystemProvider("C:\\", "Main_Directory"));
//Using a relative file path
OpenFileDialog filedialog = new OpenFileDialog();
filedialog.Roots.Add(new FileSystemProvider("./", "Main_Directory"));

Customize the Appearance

The OpenFileDialog supports customization of individual controls including textboxes and pickers.

To customize these controls:

  1. Create a class inheriting from FileDialogUI

  2. Add the custom OpenFileDialog constructor

  3. Modify the controls as needed

public class CustomOpenFileDialogUI : FileDialogUI
{
    public CustomOpenFileDialogUI(OpenFileDialog openFileDialog) : base(openFileDialog)
    {
        this.HeaderBackColor = Color.DarkOrange;
        foreach (ColumnHeader col in this.listView.Columns)
        {
            col.BackColor = Color.DarkOrange;
        }
    }
}

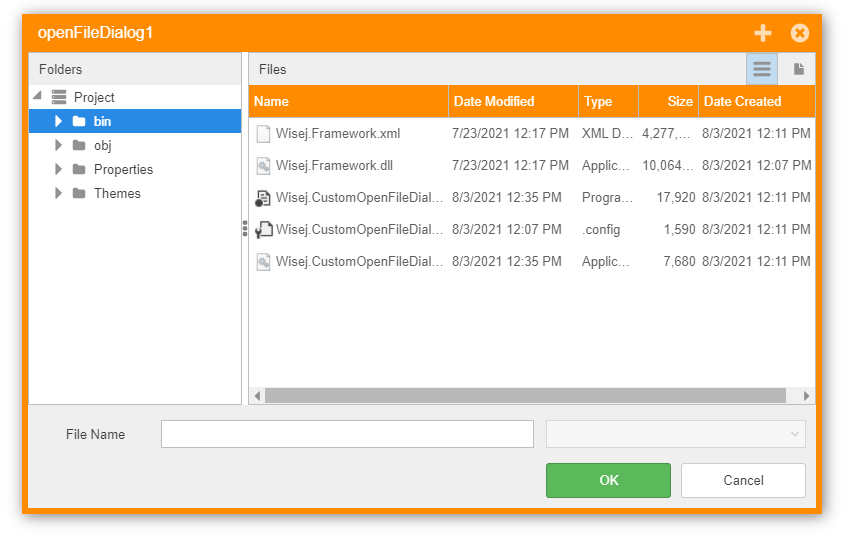

After applying the OpenFileDialog's DialogTemplate property to the new class, the result looks like this:

For advanced customization of the OpenFileDialog using custom templates, see below.

The property returns the virtual path relative to the root. To get the physical path on the server, use .

FileDialog.FileName
FileDialog.MapPath()
FolderBrowserDialog
API documentation.
OpenFileDialog showing file type filtering options
OpenFileDialog showing help button and navigation interface
Customized OpenFileDialog with dark orange theme applied
