  1. Controls & Components
  2. Content

Canvas

Represents the HTML5 canvas element.

PreviousHtmlPanelNextShape

Last updated 3 months ago

Was this helpful?

The Canvas is a control which can be used to draw graphics via scripting. This can, for instance, be used to draw graphs, combine photos, or create simple (and not so simple) animations.

For a full list of properties, methods and events see the

Features

Drawing

The Wisej.NET Canvas control implements all the same properties and methods as the JavaScript control. You can use methods like LineTo(), FillRect(), and FillText() to draw directly on the control in the browser.

How To

Draw a Line

You can draw a line with the Wisej.Web.Canvas control the same way you would a JavaScript Canvas element:

canvas1.BeginPath();
canvas1.MoveTo(0, 0);
canvas1.LineTo(100, 100);
canvas1.StrokeStyle = Color.Red;
canvas1.Stroke();

Advanced

JavaScript Widget

Item
Description

Class name

wisej.web.Canvas

Theme appearance

Child components

Source code

You must still call BeginPath() and Stroke() to draw lines. See .

"canvas", see .

"canvas" is the HTML5 canvas element. See .

https://www.w3schools.com/tags/canvas_lineto.asp
Themes
JavaScript
https://github.com/iceteagroup/wisej-js
API documentation.
Canvas

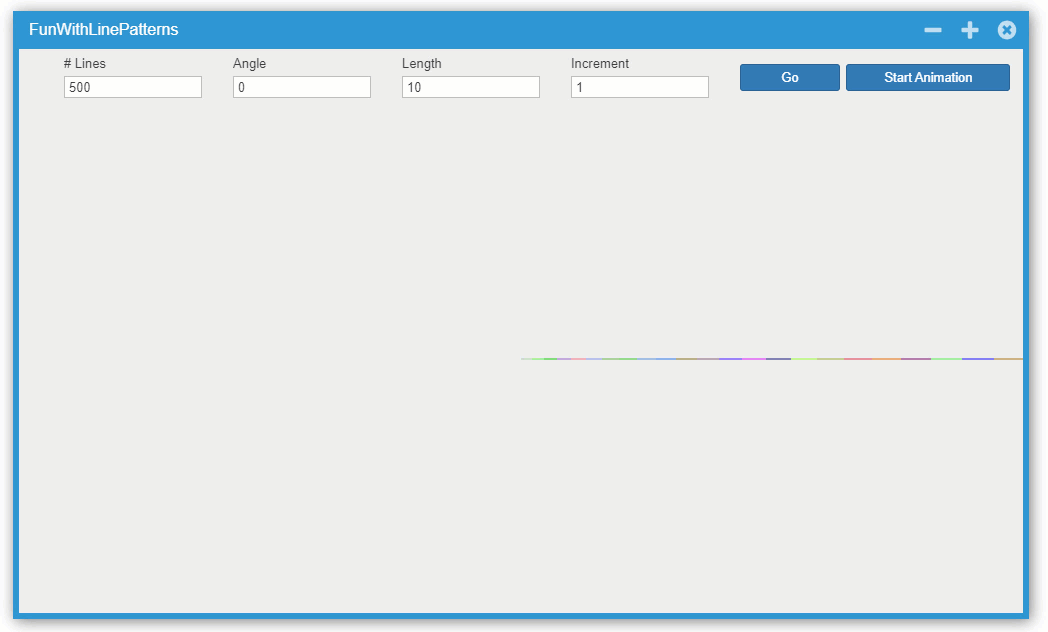

Interactive drawing demonstration using Canvas control
