  1. Controls & Components
  2. Containers

GroupBox

Represents a Wisej.NET control that displays a frame around a group of controls with an optional caption.

PreviousTableLayoutPanelNextAccordion

Last updated 2 months ago

Was this helpful?

The GroupBox displays a frame around a group of controls with or without a caption. Use a GroupBox to logically group a collection of controls on a form. The GroupBox is a container control that can be used to define groups of controls.

A typical use for a group box is to contain a logical group of RadioButton controls. When you have two group boxes, each containing several radio buttons, each group of buttons is mutually exclusive, setting one option value per group.

You can add controls to the GroupBox using the Add method of the Controls property.

For a full list of properties, methods and events see the

Features

Collapsible

The visibility of the GroupBox can be controlled at runtime using the ShowCloseButton property.

CheckBox

The GroupBox control features an optional checkbox that can be toggled to enable or disable the child controls. Set the ShowCheckBox property to true to show the checkbox. Set the Checked property to toggle the checked state.

AutoSize

When enabled, the GroupBox control resizes itself to fit its contents according to the AutoSizeMode property specified.

Advanced

JavaScript Widget

Item
Description

Class name

"wisej.web.GroupBox"

Theme appearance

Child components

Source code

"groupbox", see .

"legend" is the groupbox legend. "frame" is the groupbox frame. "close-button" is the button that hides the groupbox. See .

Themes
JavaScript
https://github.com/iceteagroup/wisej-js
API documentation.
GroupBox demonstrating collapsible functionality
GroupBox showing checkbox integration for enabling/disabling contents

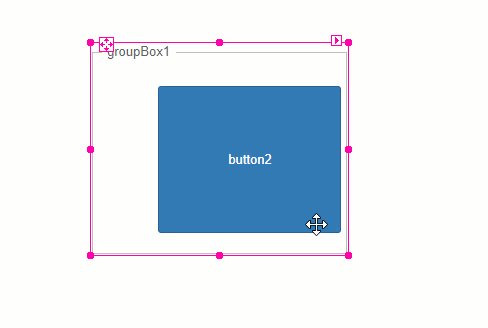

GroupBox demonstrating automatic resizing behavior
