  1. Controls & Components
  2. Containers

FlowLayoutPanel

Represents a panel that dynamically arranges its children horizontally or vertically in automatic rows or columns.

PreviousFlexLayoutPanelNextTableLayoutPanel

Last updated 3 months ago

Was this helpful?

The FlowLayoutPanel control arranges its contents in a horizontal or vertical flow direction. You can wrap the control's contents from one row to the next, or from one column to the next. Alternatively, you can clip instead of wrap its contents.

You can specify the flow direction by setting the FlowDirection property. The FlowLayoutPanel control correctly reverses its flow direction in Right-to-Left (RTL) layouts. You can also specify whether the contents are wrapped or clipped by setting the WrapContents property.

The FlowLayoutPanel control automatically sizes to its contents when you set the AutoSize property to true. It also provides a FlowBreak property to its child controls. Setting the FlowBreak property to true causes the control to stop laying out controls in the current flow direction and wrap to the next row or column.

Any Wisej.NET control can be a child of the FlowLayoutPanel control, including other FlowLayoutPanel instances. This enables construction of sophisticated layouts that adapt to your form's dimensions at runtime.

For a full list of properties, methods and events see the

Features

AutoSize

When enabled, the FlowLayoutPanel control resizes itself to fit its contents according to the AutoSizeMode property specified.

Flow Direction

The FlowLayoutPanel control supports multiple layout directions for its children using the FlowDirection property. Available options are LeftToRight, TopDown, RightToLeft, and BottomUp. The default layout direction is LeftToRight.

Advanced

JavaScript Widget

Item
Description

Class name

"wisej.web.Panel"

Theme appearance

Child components

Toolcontainer state

Source code

"panel", see .

"pane" is the container. "captionbar" is the header. "title" is the title of the panel. "icon" is the icon of the panel, if applicable. "close-button" is the close button of the panel, if applicable. See .

"panel", see .

Themes
JavaScript
Embedded Tools
https://github.com/iceteagroup/wisej-js
API documentation.
Layouts

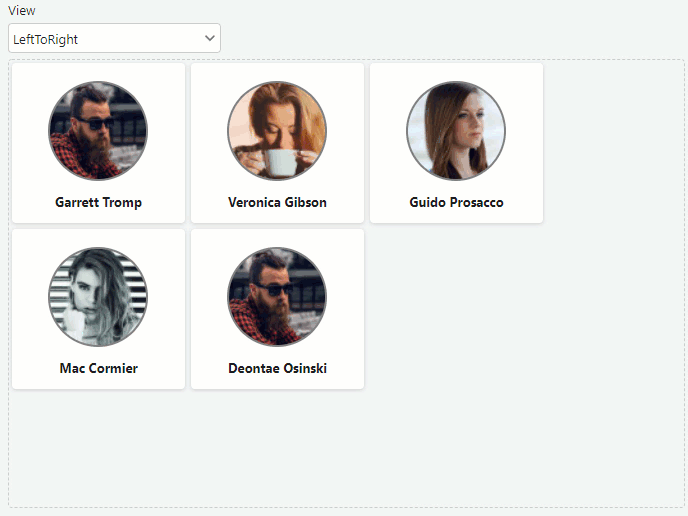

FlowLayoutPanel demonstrating different flow direction options
